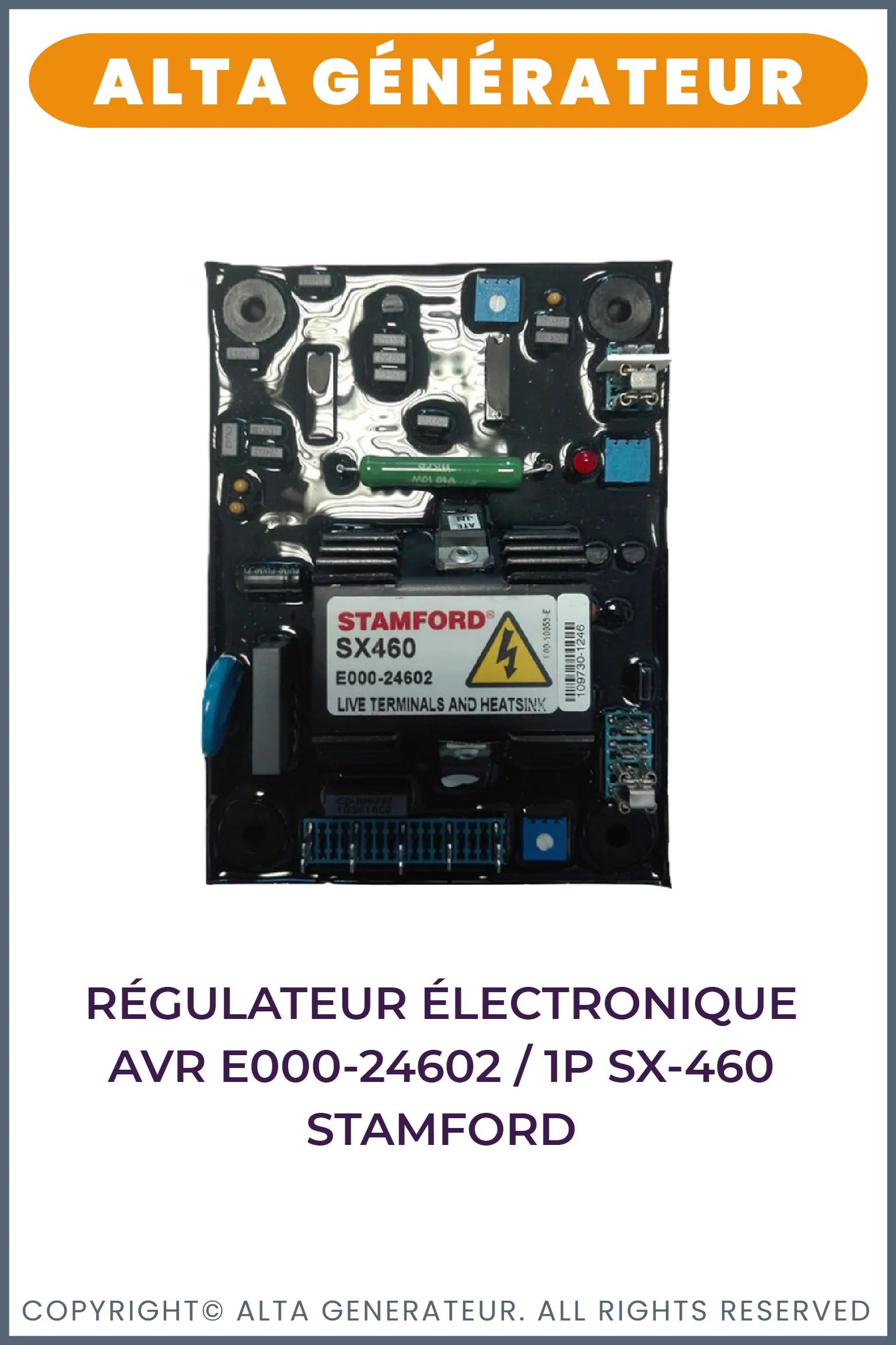

Régulateur électronique AVR E000-24602 / 1P SX-460 Stamford
Régulateur électronique AVR E000-24602 / 1P SX-460 Stamford
Régulateur électronique AVR E000-24602 / 1P SX-460 Stamford
Product Description
AVR E000-24602 / 1P SX-460 STamford
| INPUT | Voltage Jumper selectable |
| 95-132V AC or | |
| 190-264V AC | |
| Frequency 50-60 Hz nominal | |
| Phase 1 | |
| OUTPUT | Voltage max 90V dc at 207V ac input |
| Current continuous 4 A dc | |
| Intermittent 6 A for 10 secs | |
| Resistance 15 ohms minimum | |
| REGULATION | +/- 1.5% |
| THERMAL DRIFT | 0.05% per deg. C change in AVR ambient |
| TYPICAL SYSTEM RESPONSE | AVR response 20 ms |
| Filed current to 90% 80 ms | |
| Machine Volts to 97% 300 ms | |
| EXTERNAL VOLTAGE ADJUSTMENT | +/-10% with 1 k ohm 1 watt trimmer |
| UNDER FREQUENCY PROTECTION | Set point 95% Hz |
| Slope 170% down to 30 Hz | |
| UNIT POWER DISSIPATION | 10 watts maximum |
| BUILD UP VOLTAGE | 4 Volts @ AVR terminals |
| ENVIRONMENTAL | Vibration 20-100 Hz 50mm/sec |
| 100Hz – 2kHz 3.3g | |
| Operating temperature -40 to +70°C | |
| Relative Humidity 0-70°C 95% | |
| Storage temperature -55 to +80°C |
